Подшипник RABRB35/80-XL-FA106 INA

Описание

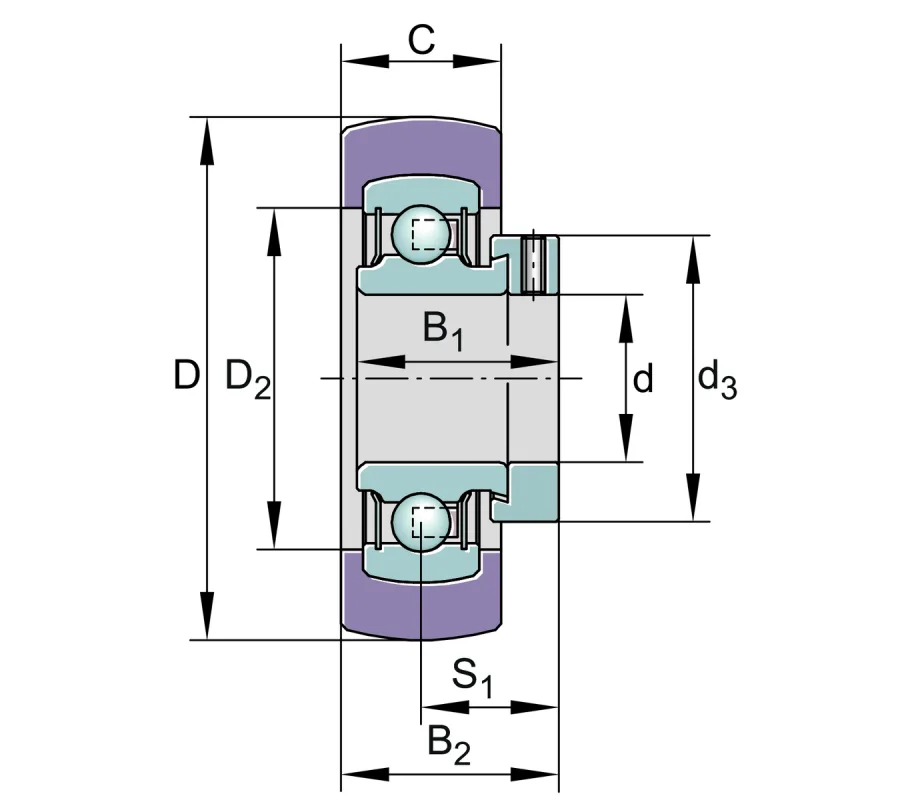

Main Dimensions & Performance Data








d
35 mm
Bore diameter


D
80.2 mm
Outside diameter


C
24 mm
Width, outer ring


B2
41.4 mm
Width total


B1
39 mm
Locking collar total width


Cr
25,500 N
Basic dynamic load rating, radial


C0r
15,300 N
Basic static load rating, radial


Cur
650 N
Fatigue load limit, radial



2,700
Load carrying capacity (rubber interliner)


m
0.54 kg
Weight











Dimensions







S1
29.4 mm
Distance raceway to locking collar


D2
62 mm
Flange diameter rubber interliner


d3
55 mm
Outside diameter locking collar/locknut











n.r.







Shore A
70
Hardness rubber interliner











Calculation factors







f0
13.8
Calculation factor











Additional information








RAE35-XL-NPP-B-FA106
Bearing designation

Характеристики

Производитель

INA
